Description

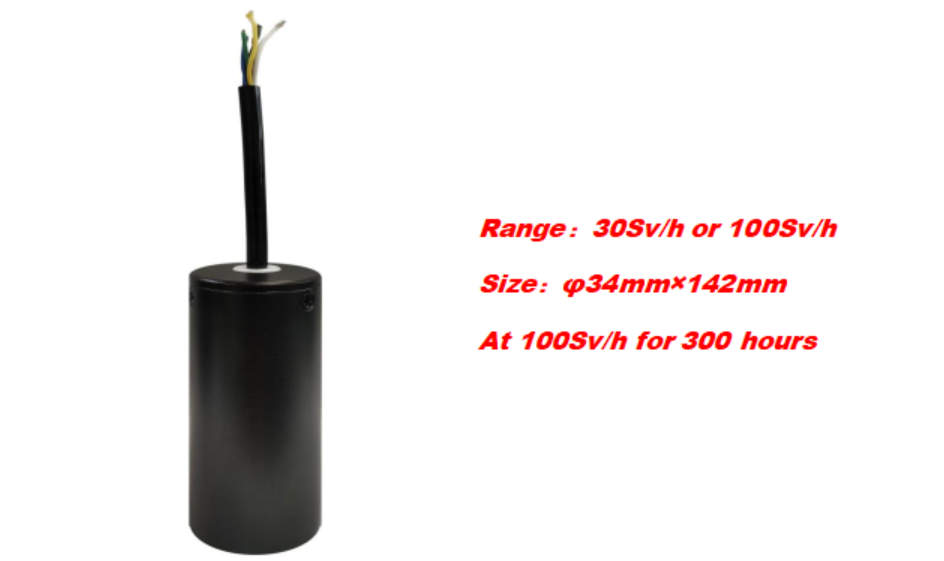

        COLIY latest-generation second-generation ultra-high-range X (γ) nuclear power dedicated detector, the ION-H, utilizes imported energy-compensated GM sensors with a measurement range of 30 Sv/h or 100 Sv/h. The innovative process has significantly reduced product dimensions, with the probe now measuring as compact as φ34mm×142mm.This miniaturized design greatly expands application possibilities to meet diverse user needs. Integrated automatic range switching technology enables a measurement span of 107, with a minimum resolution of 10μSv/h. Featuring radiation-resistant material packaging and enhanced GM tube lifespan technology, it can operate continuously for300 hours in environments exceeding 100Sv/h.

        The ION-H nuclear power dedicated detector demonstrates high sensitivity, wide measurement range, precision, strong anti-interference capability, excellent stability, broad application scope, and radiation resistance.Equipped with standard RS485 output and a 5VDC power supply, it supports external connection to our R700 and R2000 host units for display, or direct communication via RS485 with PLCs and computers.This functional development ensures measurement accuracy while enhancing environmental adaptability.

Applications

        The ultra-high range X (γ) nuclear power dedicated detector ION-H is not only suitable for nuclear power industry, but also widely used in laboratories, power plants, emergency rescue stations, metal processing plants, oil fields and oil pipeline equipment, environmental protection and other departments.

Specifications
